Compatibilidad con varios Procesadores (Intel® Celeron®, Pentium® or Core i3 or i5), Opciones para diferentes placa IO .
Alimentación 5/ 12V en todos los puertos serie para alimentar todos los periféricos necesarios(Scanner, Visor, Balanza, 2ª Pantalla, MSR....)
PP-8642C3 (LED 30.000Horas)
PP-8642C5 (LED 50.000Horas)
Disponible con Procesador Celeron, I3 o I5

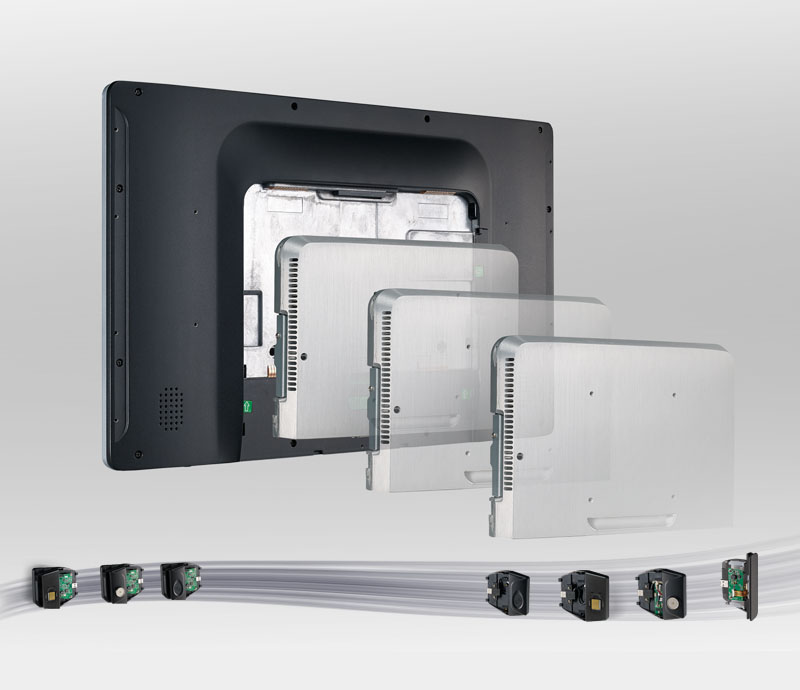

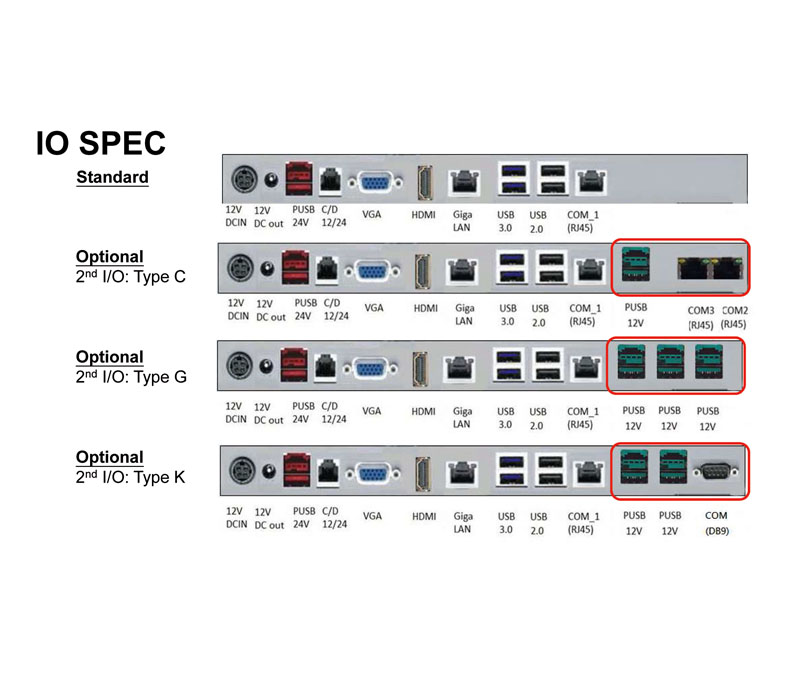

Modulos IO Disponibles:
Type C: 2 x Puertos serie: COM 2 & COM 3 (RJ45) RI / 5V / 12V Seleccioanble; Powered USB Port: 1 x 12V
Type G: Powered USB Port: 3 x 12V
Type K: Powered USB Port: 2 x 12V; 1 x (DB9) COM 2, RI / 5V / 12V Seleccionable
Procesador
Memoria de sistema 2 GB Standard, Máximo 16 GB (2 x 8GB 204 pins DDR3L 1600)
Chipset GráficoChipset Gráfico Intel® H81
Fuente Alimentación 12V 150W External ATX Power Supply
Disco de almacenamiento 1 x 2.5", SATA HDD or SATA SSD
Versión PP-8642 (standar)
Puertos Serie 1 Externos : COM1 (RJ45)
USB Port 5 x Externos (4 Detrás, 1 Delante) (2 USB 3.0 / 3 USB 2.0)
1 Puerto USB 24V
Cajón Port 1 x RJ11 (12V / 24V)
LAN Port 1 x RJ45 Giga LAN
Video Port 1 x VGA, 1 x HDMIAudio Port 1 x Line-out, 1 x Mic-in
DC Output 1 x 12V DC Jack 2.5 mm
Indicador LED Acceso a Disco HDD / Acceso LAN / Power
530 (W) x 388 (H) x 62.3 (D) mm, 8 Kg
Sistemas Operativos:
Windows 7, Windows Embedded POSReady 7, Windows 8.1, Windows Embedded 8.1 Industry, Windows 10
