PC-BOX XC-373
PC 100% Fanless with Industrial component of long length.
Team totally Fanless without any mechanical component thanks to his carcasa of steel with aluminium to dissipate the temperature and give him a big stability and robustness to a very affordable price.
Prepared to work in critical surroundings and very hard like kitchens of restaurants, Industry, iSignage or retail where remain a lot of hours working.
Feeding 5/ 12V in all the serial ports to feed all the necessary peripherals(Scanner, Finder, Scales, 2ª Screen, MSR....) And Powered USB of 12V 24V, available
- Team Fanless
- Industrial plate
- Industrial external source
- Serial ports 5/12v / Ports USB 5V / 12V / 24V
- Carcasa Steel with aluminium
-
Models
XC-373 SL (Single Layer)
XC-373 DL (Dual Layer)
- Carcasa Alloy steel with aluminium
-
Operational
Processor Intel® Celeron® Processor J6412 (1.5M Cache, up to 2.60 GHz)
Memory of system 8 GB Standard, Maximum 32 GB (1 x 204-pin DDR4L)
Disk of storage 1 x M.2 Support PCIe GenIII or SATAIII (Guia)
-

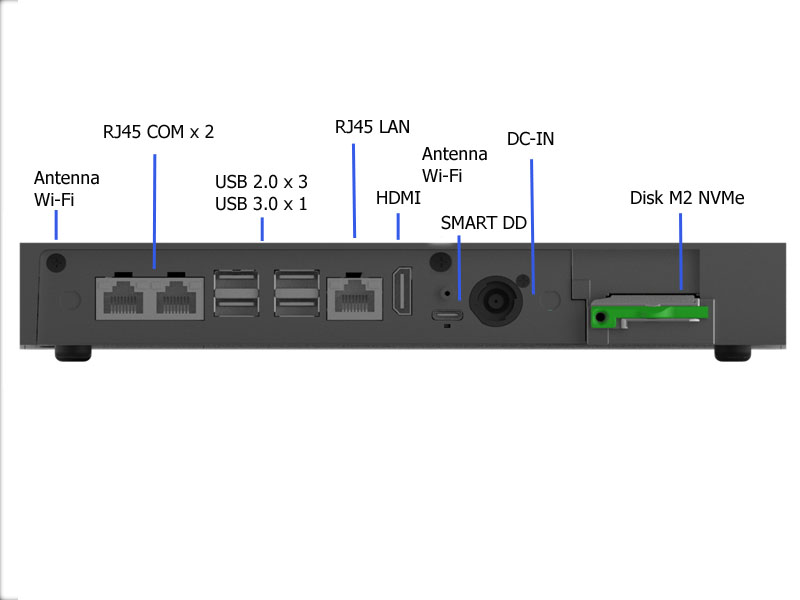

IO
RJ45 x2, USB Type To 2.0 x 3, USB Type To 3.0 x 1, Giga Lan x 1, Video Port x 1, Smart DD, x 1, DC-IN
Extra IO optional Plates ( Model DL)
- IO-1: COM x 2(DB9 x 1/RJ45 x 1), USB Type To x 4, 12V DC-Out x 1
- IO-2: PUSB 24V x 1, PUSB 12V x 3
- IO-3: COM(RJ45 x 1), 1xLAN, USB Type To x 4, 12V DC-Out x 1
-

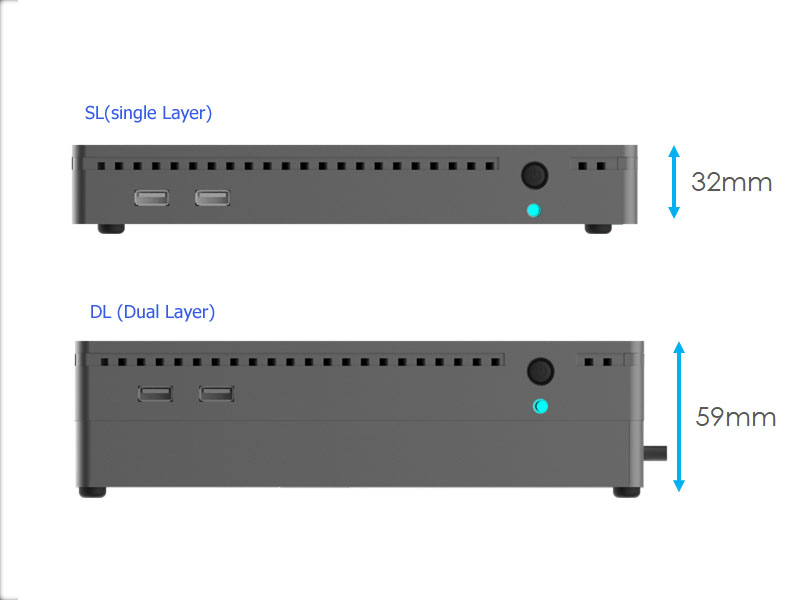

Measures
SL->229 x 32 x 140 mm
SL->229 x 59 x 140 mm
-
Surroundings
- EMI / Safety CE, FCC Class To
- Operative temperature 0˚,,C ~ 40˚,,C (32˚,,F ~ 104˚,,F)
- Temperature of Storage -20˚,,C ~ 60˚,,C (14˚,,F ~ 131˚,,F)
- Relative humidity 10% ~ 90% (no condensed)
-
Operating system
Operating systems:
Windows 10 LTSC, Windows 11 IoT Enterprise
Linux Unbuntu
-
Guarantee
2 Years
